PRODUCT BUNDLE

OSMO T1 Concealed Cistern & Reef Flush Plate Bundle

Bundle Includes

1 x OSMO® T1 Concealed Cistern (Cistern Only)

1 x Reef Pneumatic Push Plate - Chrome

£82.00 ex VAT

Top access, concealed reversible cistern with AXIS Technology creating multiple inlet options from the same unit. Perfectly designed to be mounted behind IPS, within compact voids or on timber and steel frames.

• WRAS approved Dudley Niagara pneumatic flush valve

• WRAS Approved Dudley Hydroflo AG 7s Compact brass tail inlet valve (2020 WATER REGS)

• Fluid category 5 cistern

• Slim 110mm deep cistern body to fit into compact spaces

• Unique reversible cistern body due to AXIS Technology achieving multiple outlet and inlet options - reducing installation time

• Factory Assembled

• Multiple flushing volumes: 6/4, 5/3, 4/2.6ltr achieved with removable baffles at installation stage

• Bundle includes the modern, dual operation Reef Pneumatic Push Plate finished in Chrome

• Delivery in 2-3 days

Doc M
Doc M
Water Saving
Water Saving
Healthcare
HBN/SHTM
WRAS approved
WRAS

OSMO Cistern - CIST200
Fluid category 5 cistern.
Easy top access with reversible SnapLock lid.
Flush Pipe Stability System (FPSSTM) with SureLock Bracket.
Pneumatic push buttons/ plates can be installed up to 250mm away from cistern.
90 degree tight radius push fir flush pipe (Min.105mm - Max.386mm).

Water saving
Excellent water saving from the factory set flush valve at 6/4ltr. Outstanding water saving can be achieved when setting the valve to 4/2.6ltr dual flush combined with the 7 second compact inlet valve.


Material
High Density Polystyrene (PS)

Standard
Manufactured under BS EN ISO 9001 and BS EN ISO 14001
Supports Code of Sustainable Homes
Supports BREEAM
Fully WRAS approved

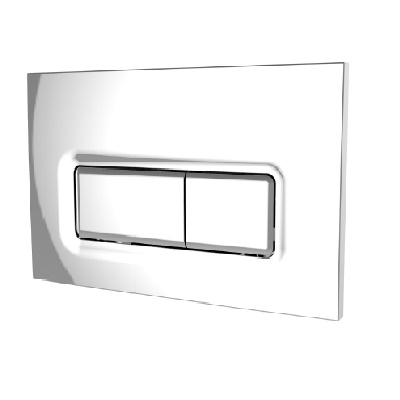

Reef Dual Flush Push Plate in Chrome - CIST208
Dual flush operation for full & water saving reduced flush
Smooth pneumatic operation
Chrome plated finish
Can be positioned up to 250mm away from the cistern

2 - 3 days

All Files

Here you can download the technical documents that you may require to specify your sanitaryware. Data Sheets, CAD Blocks, BIM files and images can all be downloaded or saved to your personal project folders.

Please register and log in to gain access to our full technical library.
