WC frame with dual flush square button toilet cistern for wall hung toilet

WC frame with dual flush square button cistern

Specification
Technical

Description
WC frame with dual flush square button cistern

Features
*Wall Hung WC support frame load tested to 400kg
*6/4 ltr dual flush can be easily converted to 5/3 or 4/2.6ltr flushing
*Front or top access
*Frame height adjustable from 820 – 1120mm
*Frame legs adjust to offer WC pan height fixing flexibility
*Wall & floor fixing brackets can be fixed through 180 degrees & 360 degree respectivly to aid installation flexibility
*flushbend & WC pan connector clamps
*WRAS approved internals

Push button Features
*Air tubes to push button up to 750mm away from cistern Material
High impact polystyrene

Standard
The cistern conforms to BS EN 14055:2010

All Files

Here you can download the technical documents that you may require to specify your sanitaryware. Data Sheets, CAD Blocks, BIM files and images can all be downloaded or saved to your personal project folders.

Please register and log in to gain access to our full technical library.

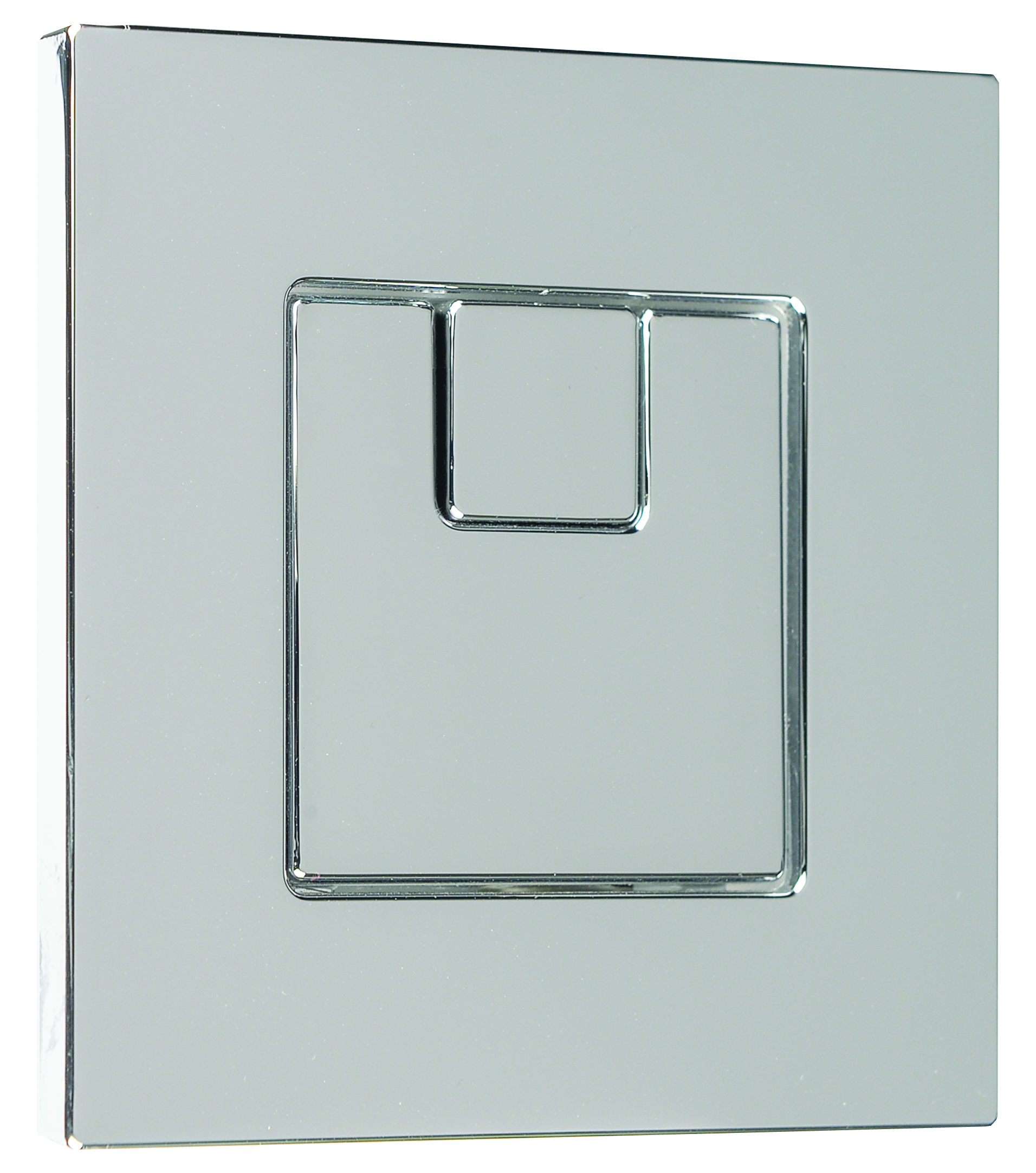

CIST104 - Flush image

CIST112 - Datasheet

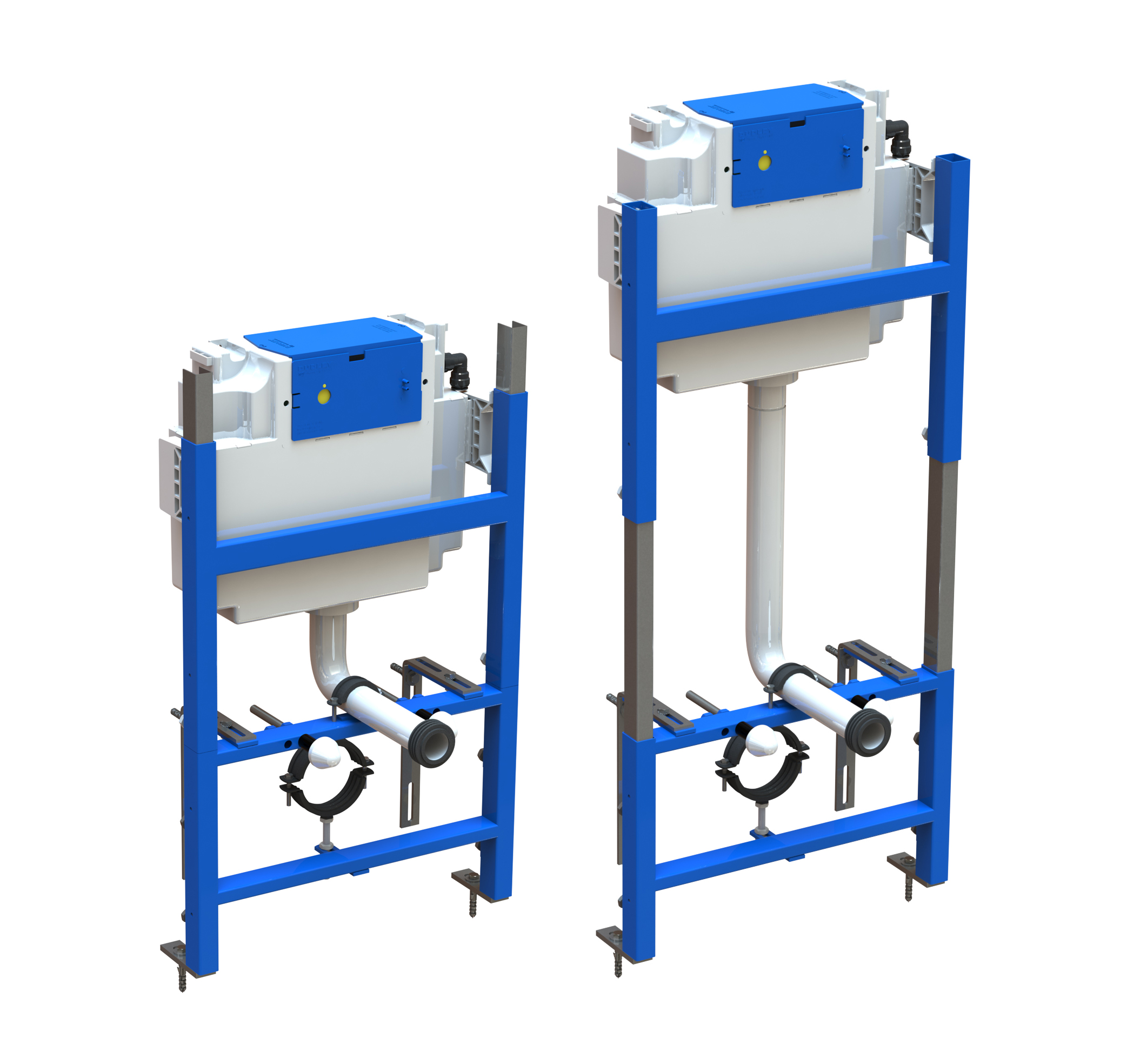

CIST112 - image

WC in wall support frame with dual flush cistern and square button

Stock Code: CIST112

£232.40 ex VAT

In wall WC frame and cistern incorporating support frame for wall hung WC, dual flush 6/4ltr cistern which can be converted to 5/3 or 4/2.6ltr flush and dual flush square push button. For Wall hung WCs' only
