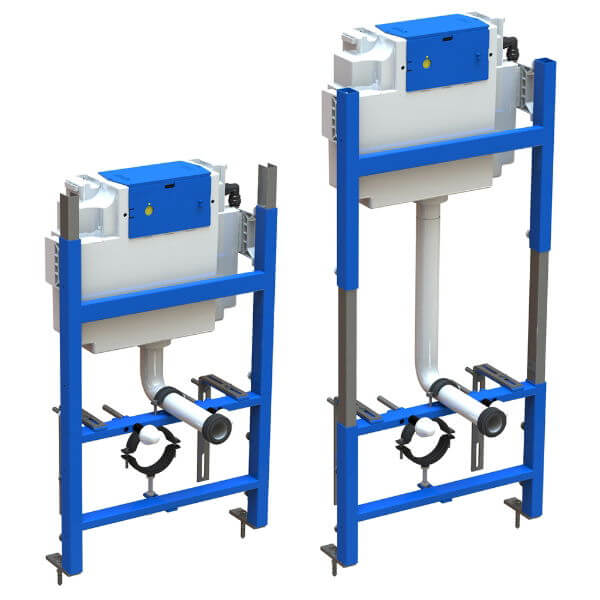

Thomas Dudley WC in Wall Support Frame with Dual Flush Cistern and No button
Product Highlights
-
Water Saving
Our water-saving products reduce consumption through low-flow rates, dual-flush cisterns and automatic shut-off systems. They help lower utility costs, minimise environmental impact and support sustainability and regulatory compliance in commercial environments.
-
WRAS
WRAS (Water Regulations Approval Scheme) is an independent UK certification body for plumbing products. WRAS approval confirms compliance with UK Water Supply Regulations and demonstrates that a product meets required standards for safety and water efficiency. Find out more here.
In wall WC Frame and Cistern incorporating support frame for wall hung WC and cistern. No button included to allow flexibility to pair with many compatible flush plates, buttons or sensor flush options.
£247.50 exc. VAT
Free UK Delivery for orders over £500
Description
This in-wall WC frame and cistern unit includes a support frame for a wall-hung toilet and features a dual flush cistern. The concealed design provides a sleek finish while offering reliable flushing performance and easy operation compatibles with many flush plates, buttons or sensor flush options.
Features
- Wall Hung WC support frame load tested to 400kg
- 6/4 ltr dual flush can be easily converted to 5/3 or 4/2.6ltr flushing
- Front or top access
- Frame height adjustable from 820 1120mm
- Frame legs adjust to offer WC pan height fixing flexibility
- Wall and floor fixing brackets can be fixed through 180 degrees and 360 degrees respectively to aid installation flexibility
- Flushbend and WC pan connector clamps
- WRAS approved internals
- Conceals all pipework for a clean, clutter free finish
- Compatible with a range of buttons, flush plates and sensor flush options
Specifications
| Product Type | Concealed Toilet Cisterns, In Wall Frames |
|---|---|
| Range | Illusion |
| Sector | Commercial, Education, Healthcare, Industrial, Leisure, Residential |
| Product Highlights | Water Saving, WRAS |
| Dimensions | 150-370 × 498 × 820-1078 mm |
| Weight | 13 kg |
| Flush Capacity | 4/2.6 Litres, 5/3 Litres, 6/4 Litres |
| Single or Dual Flush | Dual |
| Guarantee | 10 Years |
