Product Highlights
-
Water SavingOur water-saving products reduce consumption through low-flow rates, dual-flush cisterns and automatic shut-off systems. They help lower utility costs, minimise environmental impact and support sustainability and regulatory compliance in commercial environments.
-
WRASWRAS (Water Regulations Approval Scheme) is an independent UK certification body for plumbing products. WRAS approval confirms compliance with UK Water Supply Regulations and demonstrates that a product meets required standards for safety and water efficiency. Find out more here.

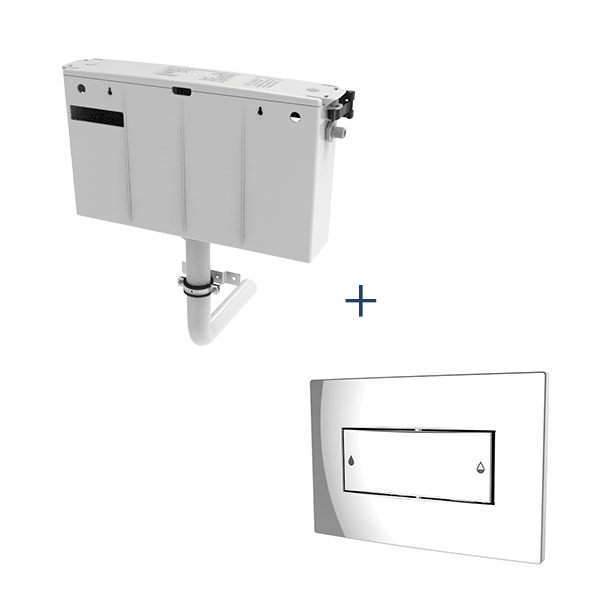

Thomas Dudley OSMO T1 Concealed Cistern & Coral Flush Plate Pack
Product Highlights
-
Water Saving
Our water-saving products reduce consumption through low-flow rates, dual-flush cisterns and automatic shut-off systems. They help lower utility costs, minimise environmental impact and support sustainability and regulatory compliance in commercial environments.
-
WRAS
WRAS (Water Regulations Approval Scheme) is an independent UK certification body for plumbing products. WRAS approval confirms compliance with UK Water Supply Regulations and demonstrates that a product meets required standards for safety and water efficiency. Find out more here.
The Thomas Dudley OSMO T1 Concealed Cistern & Coral Flush Plate Pack offers a compact, versatile, and high-performance solution for modern washroom installations. Designed for flexibility and ease of installation, it is ideal for use behind IPS panels, within tight voids, or on timber and steel frame systems.
£95.00 exc. VAT
Bundle Includes
-
CIST209Coral Pneumatic Push Plate - Chrome -
CIST200OSMO® T1 Concealed Cistern (Cistern Only)
Free UK Delivery for orders over £500
Description
The Thomas Dudley OSMO T1 Concealed Cistern & Coral Flush Plate Pack is engineered to deliver reliable performance, installation flexibility, and water efficiency across commercial and leisure washroom environments. Its slim 110mm deep cistern body makes it perfect for installations where space is limited, without compromising functionality.
Featuring innovative AXIS Technology, the cistern offers a unique reversible design that enables multiple inlet and outlet configurations from a single unit. This significantly reduces installation time and complexity, making it a practical choice for a wide range of applications. The unit comes factory assembled for ease of installation and is suitable for fluid category 5 applications.
Equipped with a WRAS approved Dudley Niagara pneumatic flush valve and Hydroflo AG 7s compact brass tail inlet valve, the cistern ensures dependable and compliant performance. Adjustable flush volumes of 6/4, 5/3, or 4/2.6 litres can be easily set during installation using removable baffles, helping to optimise water usage.
Supplied complete with the dual operation Coral Pneumatic Push Plate in Chrome, this pack provides a modern finish alongside efficient and reliable flushing performance.
Features
- Slim 110mm deep cistern ideal for compact installations
- AXIS Technology allows reversible installation with multiple inlet and outlet options
- WRAS approved Dudley Niagara pneumatic flush valve
- WRAS approved Hydroflo AG 7s compact brass tail inlet valve (2020 Water Regulations compliant)
- Suitable for fluid category 5 applications
- Factory assembled for faster installation
- Adjustable dual flush volumes: 6/4, 5/3, or 4/2.6 litres
- Suitable for installation behind IPS panels or within wall voids
- Supplied with the dual operation, Coral Pneumatic Push Plate in Chrome
Specifications
| Product Type | Concealed Toilet Cisterns, Toilet Flushing |
|---|---|
| Range | Coral, Osmo |
| Sector | Commercial, Education, Industrial, Leisure, Residential |
| Product Highlights | Water Saving, WRAS |
| Operation | Push Button |
| Pack | Cistern Packs |
| Colour | Chrome, White |
| Single or Dual Flush | Dual |
| Cut Out | 205 x 116 |
| Guarantee | 10 Years |
| Material | Plastic, Plated Plastic |
